Track Width - Easy to edit

Post by TripleThreat719 »

After using my XT for a couple of weeks, I decided that the width of a track, when displayed on the screen, was too thin to be able to see with a quick glance of the screen. Since I will be using the XT both for on-road and off-road navigation, tracks will be a regular part of my use.

It's pretty easy to crate a new Map Theme that increases the width of the track.

If you can access the internal storage of the XT, you will find a folder that contains all of the Map Themes. (you need Android File Transfer if you use a MAC to be able to see the internal storage on the XT (not sure about Windows).
Make a copy of the Garmin.kmtf file on the desktop of your computer.
Open that file with Text Editor
The very last entry is for Track Display - Change the scale from 1.0 to 3.0
Back at the top of the text file, you will see another field for Name - It will say Garmin - I changed mine to Thick
Save the file
I then also renamed the file to Thick.kmtf
Then you copy that new theme file into the same folder where you got the copy of Garmin.kmtf
Turn on your XT
Go to Settings
Go to Map & Vehicle Preferences
Go to Map Theme
Select Thick

Next time you open a map, it will display the track line 3 times wider than before.

Fairly easy, if you are comfortable copying, renaming and editing text files with a text editor.
Tom Schmitz
Posts: 88
Joined: Mon Apr 23, 2018 2:42 am
Has liked: 11 times
Been liked: 19 times
United States of America

Re: Track Width - Easy to edit

Post by Tom Schmitz »

[mention]TripleThreat719[/mention], Thank you!
TripleThreat719
Posts: 85
Joined: Mon Jul 01, 2019 5:35 pm
Has liked: 5 times
Been liked: 31 times
United States of America

Re: Track Width - Easy to edit

Post by TripleThreat719 »

[mention]Tom Schmitz[/mention] Welcome...

I also have the file saved if anyone wants me to just email it to them as an attachment...
Northernlanes
Posts: 21
Joined: Fri May 01, 2020 2:30 pm
Has liked: 2 times
Been liked: 6 times
Great Britain

Re: Track Width - Easy to edit

Post by Northernlanes »

I might give that a try, is there a way to change the colour of the track?
TripleThreat719
Posts: 85
Joined: Mon Jul 01, 2019 5:35 pm
Has liked: 5 times
Been liked: 31 times
United States of America

Re: Track Width - Easy to edit

Post by TripleThreat719 »

Yes - You can change the color of the track at the time you tell the Zumo to Display it Onscreen. It's one of the choices in the existing menu set.
Northernlanes
Posts: 21
Joined: Fri May 01, 2020 2:30 pm
Has liked: 2 times
Been liked: 6 times
Great Britain

Re: Track Width - Easy to edit

Post by Northernlanes »

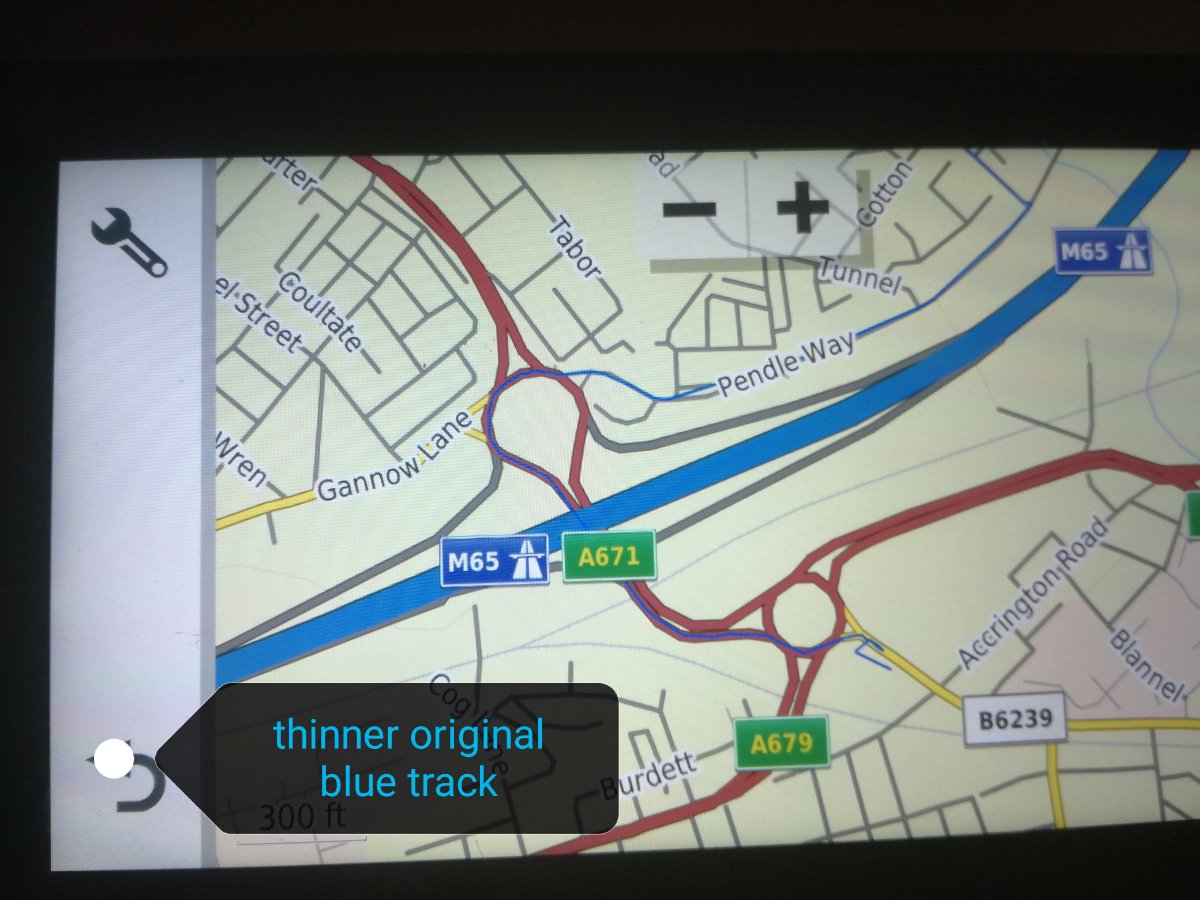

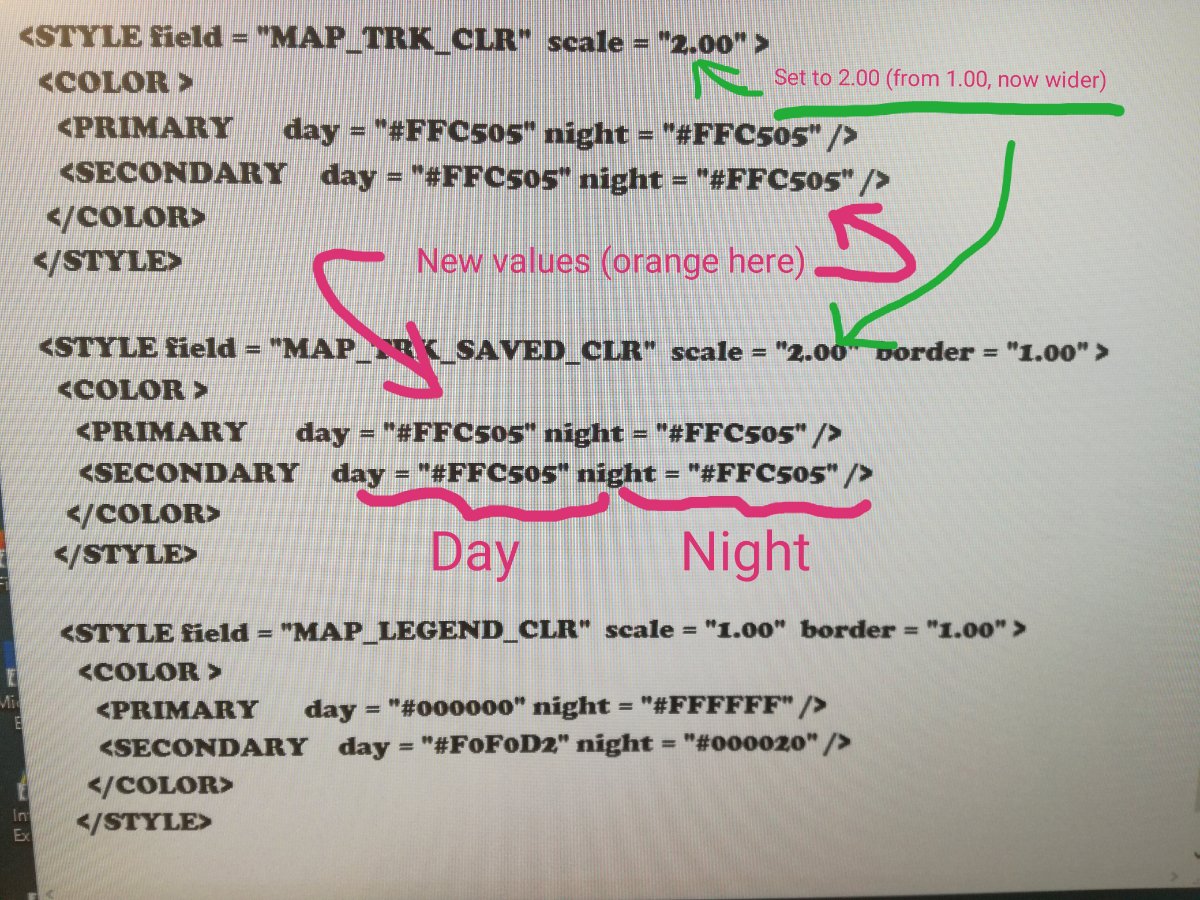

expanding on Triple Threat's 'thicker track' mod, I've tried it myself and his instructions worked great, I decided to thicken my 'track' line to 2.00, and tried it in two different colours and saved both modded United Kingdom files , in the UK an orange track stands out well as no other roads are this colour (your country may be different),
use Google to find Hex codes to set your preferred colours.

Great hack Triple Threat 👍
Attachments
Tac
Posts: 5
Joined: Tue Jun 09, 2020 2:12 pm
Been liked: 1 time
Great Britain

Re: Track Width - Easy to edit

Post by Tac »

I've just been playing around with the colour and track width mod. thinking that the it would effect my imported/saved tracks as mentioned by TripleThreat719 on 23 May 2020, 19:19 .
The only tracks that change colour on my garmin are the ' where I've been' paper-trail tracks and not the imported tracks
Am I missing something here?
TripleThreat719
Posts: 85
Joined: Mon Jul 01, 2019 5:35 pm
Has liked: 5 times
Been liked: 31 times
United States of America

Re: Track Width - Easy to edit

Post by TripleThreat719 »

Tac wrote: Fri Jun 12, 2020 1:17 pm I've just been playing around with the colour and track width mod. thinking that the it would effect my imported/saved tracks as mentioned by TripleThreat719 on 23 May 2020, 19:19 .
The only tracks that change colour on my garmin are the ' where I've been' paper-trail tracks and not the imported tracks
Am I missing something here?
Editing that file only will change the color of the track that you record using the Track Recording feature, and it will impact the width of any displayed saved track. When you choose to display a saved track on the XT you have the choice of what color to display it when you make it visible on screen.
Tac
Posts: 5
Joined: Tue Jun 09, 2020 2:12 pm
Been liked: 1 time
Great Britain

Re: Track Width - Easy to edit

Post by Tac »

Thanks Triplethreat719
Vespamarc
Posts: 47
Joined: Sun Apr 21, 2019 8:45 am
Location: Adinkerke
Has liked: 1 time
Been liked: 14 times
Belgium

Re: Track Width - Easy to edit

Post by Vespamarc »

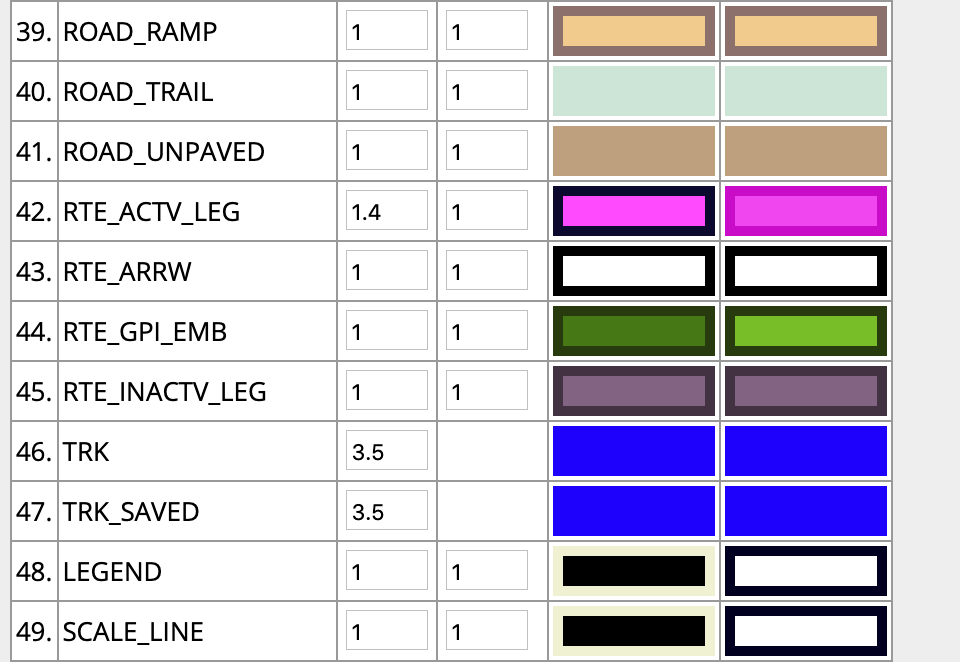

Easy to do with this online software : https://www.javawa.nl/zumocolors.html

You need to change 46 and 47 for a thick trackline.
Schermafbeelding 2020-06-17 om 13.43.15.png
Schermafbeelding 2020-06-17 om 13.43.15.png (57.39 KiB) Viewed 4944 times
Post Reply
